realloy N+
550,00lei
inclus TVA
An universal NiCr bonding alloy compatible with all conventional ceramic materials
- High stability
- Also suitable for laser welding
- Easy finishing after casting
- Exellant bonding with ceramics
- Worldwide proven quality
- Biocompatible
Composition
Ni 62,4 % | Cr 25,0 % | Mo 11,0 % | Si 1,6 % | Nb, Mn, Fe < 1%
This alloy is Beryllium free and complies with EN ISO 22674, Typ3
Properties
Density 8,2 g/cm³
Vickers hardness 200 (HV10)
Linear CTE (25 - 500 °C) 13,9 (10-6·K-1)
Linear CTE (25 - 600 °C) 14,1 (10-6·K-1)
Melting interval 1280 - 1350 (°C)
Casting temperature 1420 (°C)
Recommended burning temperatur 980 (°C)
Proof strength (Rp 0,2) 375 (MPa)
Modulus of elasticity 200 (GPa)
Tensile elongation (A5) 10,0 (%)
Tensile strength (Rm) 660 (MPa)

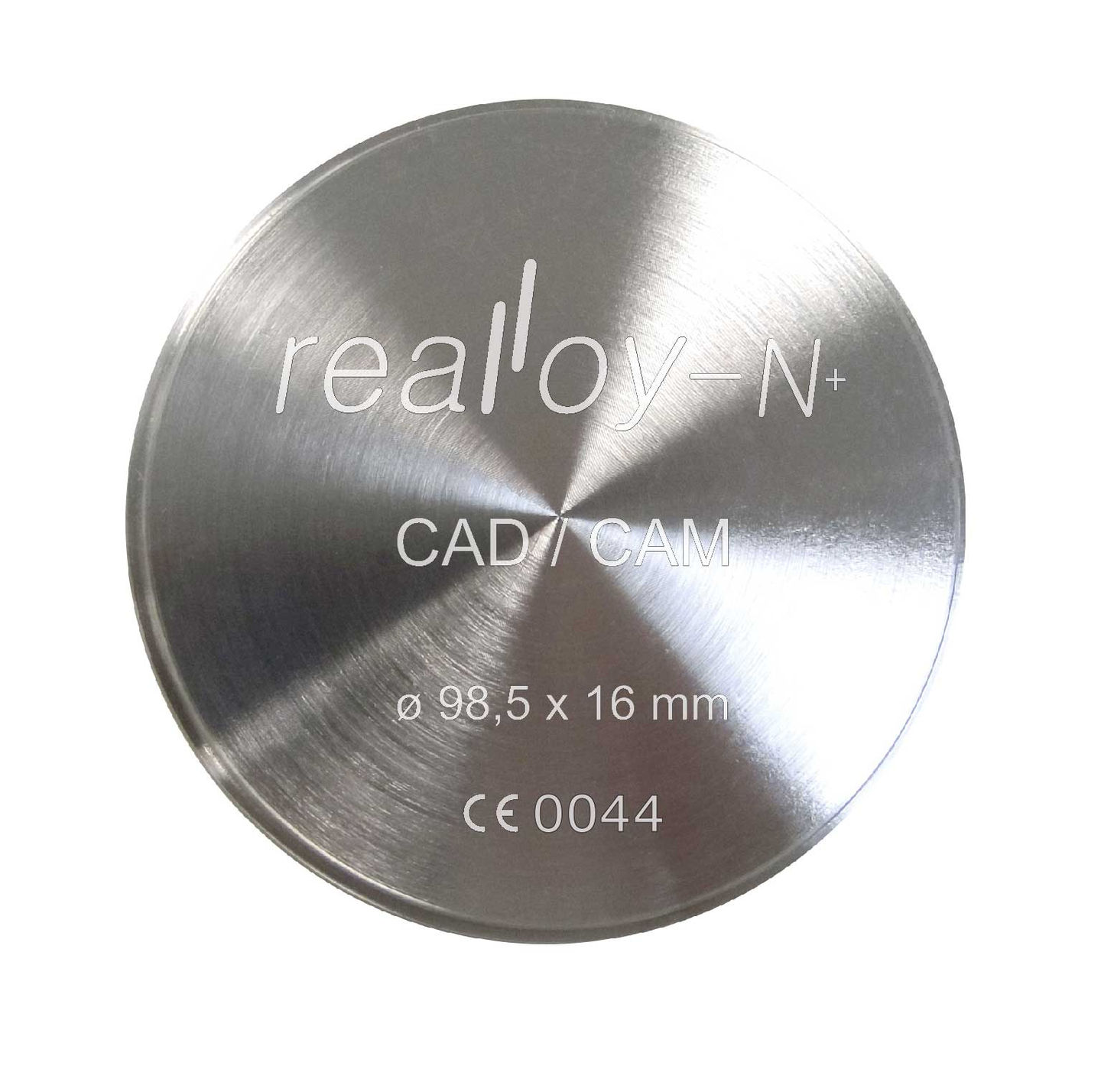

NiCr-Disc for CAD/CAM application
Available with or without step
Height: 8 | 10 | 12 | 13,5 | 14 | 15 | 16 | 18 | 20 | 22 | 24 mm
Diameter Ø 98,5 mm or without step Ø 99,5 mm
According your request, can be manufactured in different heights and diameters
